Testing Integration#

Click below to jump to the topics:

• Prerequisites for Testing

• How do I place a test order from the Sandbox environment?

• How do I perform the E2E test cases?

In order to test your integration, you’ll need to do the following:#

1. Choose a Test Vendor

• Option 1: Use an existing test vendor from your chain

• Option 2: Create and onboard a new test store for testing

2. Gain access the Sandbox Environment

1. Go to the Partner Portal and use the "Test Order" button to simulate an order.

2. Ensure the following are set up:

   • Webhook is configured in the Partner Portal

   • Vendor integration settings are enabled in the catalog

   • Based on your testing scope, you can configure the staging or production environment webhook

3. Validate Your Integration
You can leverage our end-to-end (E2E) test cases to validate that integration meeting your requirements

How do I place a test order from the sandbox environment?#

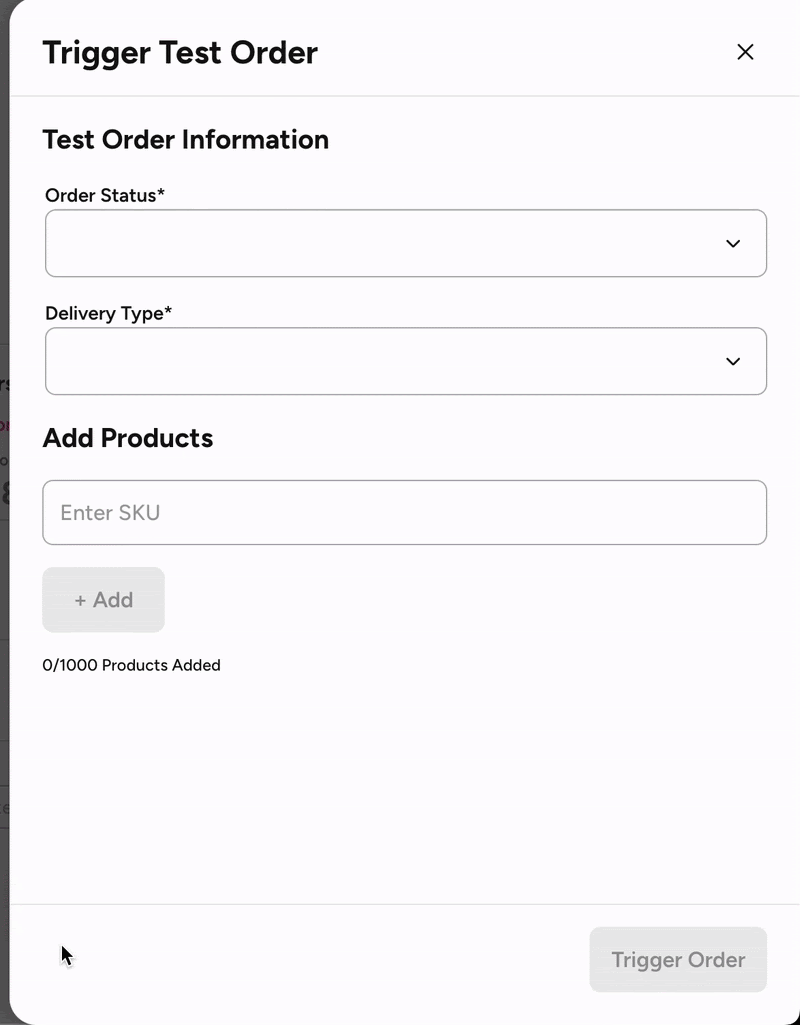

Once the integration type is configured on the store and webhook is configured. Partner Portal will show a test order button to trigger a test order.

Only following flows can be tested from sandbox environment:

• Order creation with weighted and unit items

• Order fulfillment via PUT request

• Order cancellation

• Item replacement cannot be tested please use E2E testing flow

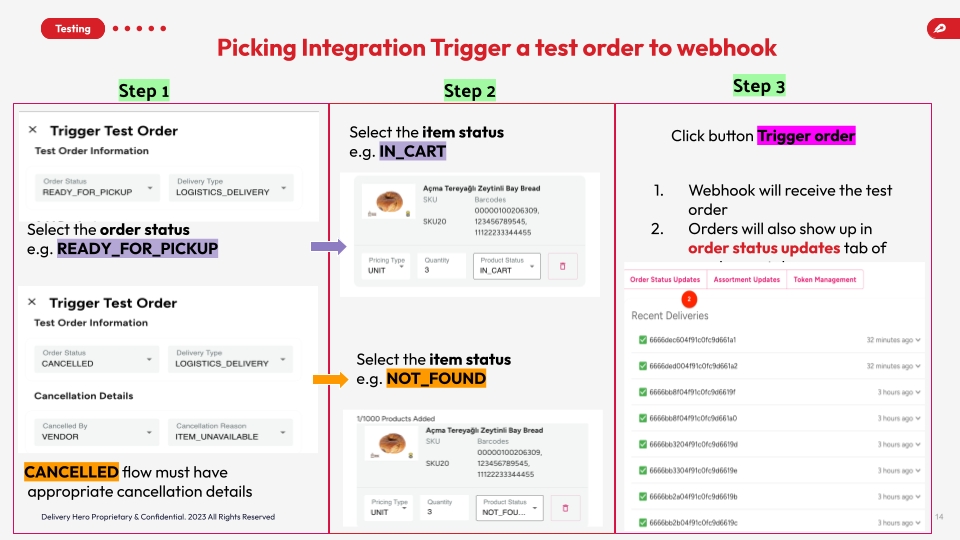

The below image demonstrates the READY_FOR_PICKUP and CANCELLED flows

If you want to test the flow for fulfilling an order:

1. Select the order status as READY_FOR_PICKUP and delivery type LOGISCTICS_DELIEVRY

2. Add an SKU to the order and select the item status as IN_CART

3. Click on Trigger order

Order should now appear on your webhook. You can review in API >order API > orders section in Partner Portal

If you want to test the flow to cancel an order:

1. Select the order status as CANCELLED and delivery type LOGISCTICS_DELIEVRY

2. Add cancellation details cancelled by VENDOR and reason for cancellation ITEM_UNAVAILABLE

3. Add an SKU to the order and select the item status as NOT_FOUND

4. Click on Trigger order

Order should now appear on your webhook. You can review in API >order API > orders section in Partner Portal

How do I perform E2E testing?#

In order to ensure your integration is up and running, it’s vital that you go through the end-to-end test cases. You’ll see all 8 use cases listed below:

1. Place an order on the Platform App and confirm on RECEIVED order status event triggered to your webhook

2. Complete Order fulfilment for Platform and Vendor Delivery flows

   1. Complete Order fulfilment using the PUT endpoint & Platform Delivery flow

   2. Modified request body

      1. For Item level status: IN_CART

      2. Using PUT request share order fulfilment status READY_FOR_PICKUP

      3. You should receive response HTTP 200

      4. Your webhook should receive READY_FOR_PICKUP

      5. Your webhook should receive DISPACHED status as well, sent when the rider picks up the order from the vendor. You utilised reconciliation of orders, this order is an asynchronous status you can have upto 30 minutes delay

   3. Complete Order fulfilment using the PUT endpoint & Vendor Delivery flow

   4. Modified request body

      1. For Item level status: IN_CART

      2. Using PUT request share order fulfilment status DISPACHED

      3. You should receive response HTTP 200

      4. Your webhook should receive DISPACHED status

3. Partially fulfil an order using the PUT endpoint, for both Delivery flows

   1. Modified request body

   2. Order status: READY_FOR_PICKUP or DISPACHED

   3. Item level status: IN_CART & NOT_FOUND`

   4. You should receive response HTTP 200

   5. Your webhook must receive READY_FOR_PICKUP, DISPACHED or both status

4. Cancelling an order from Customer or Logistics or Vendor:

   1. Customer cancellation after order placement:

      1. Order is placed on Platform App

      2. Your webhook should receive the RECEIVED status

      3. Customer cancelled the order

      4. Your webhook should receive CANCELLED status

   2. Customer cancellation after order fulfilment:

      1. Order is placed on Platform App

      2. Your webhook should receive the event RECEIVED

      3. Picker received the order and fulfilled the order using PUT endpoint

      4. Your webhook should receive READY_FOR_PICKUP or DISPACHED or both depending on your delivery flow

      5. Customer cancelled the order

      6. Your webhook should receive the CANCELLED status

      7. In cancellation order payload you will receive an additional field post_pickup_flag: true which means cancellation happened after rider pickup. (check this FAQ)

   3. Vendor cancellation:

      1. Order is placed from Platform App

      2. Your webhook should receive status RECEIVED

      3. Cancel the order from your picking device using PUT & CANCELLED status

4. Logistics cancellation(Platform delivery)

   1. Order is placed

   2. Your webhook should receive RECEIVED status

   3. You may then fulfil the order and receive READY_FOR_PICKUP status

   4. When logistic cancels the order you receive CANCELLED status to your webhook

5. In cancellation order payload you will receive an additional field post_pickup_flag: true which means cancellation happened after rider pickup. (check this FAQ)

5. Modify item quantity or price for UNIT items using the PUT endpoint

   1. Modify the body of the item.pricing

   2. In pricing object quantity must be between max_quantity and min_quantity. Pricing is automatically adjusted

   3. If you want to adjust the price, use the unit\_price or total\_price, not both and not more than total_price or **unit\_price

6. Modify item quantity or price for weighted (KG) items using the PUT endpoint

   1. Configuration is required in Catalog to set the item tag as sold_by_weight to enable weighted items.

   2. weight must be between max_quantity and min_quantity. Pricing is automatically adjusted

   3. Direct price adjustments on weighted items are not valid

7. Replace an OOS item using PUT endpoint

   1. If item A is out-of-stock and you want to replace it with item B. Prepare the request body

   2. Set item status of item A as REPLACED and item B as IN_CART

   3. Include a new field replaced_id in item B, and use the value from id field from item A

   4. Fulfill the order using the READY_FOR_PICKUP or DISPACHED based on your delivery flow.

8. Update Cart to validate changes on items

   1. Adjust the items status, or price or quantity

   2. Send PUT request with order status as UPDATE_CART

   3. Check for any feedback and rerun the request for success

   4. To complete the order send order fulfilment status with READY_FOR_PICKUP or DISPATCHED based on your delivery flow

9. Add additional item to the order using PUT endpoint

   1. Prepare request body with following to add a new product

      1. sku: required for product hydration.

      2. pricing.quantity: required

      3. pricing.weight: required for weighted items

      4. pricing.unit_price: optional, Vendors can set a unit overriding the original price If not provided, the order will use the price from the item hydration

   2. Item status should be ADDITION

   3. Fulfill the order using the READY_FOR_PICKUP or DISPACHED based on your delivery flow.

10. GET /vendor_id/orders

    1. Set the time frame and get the list of orders at the store level, they will have final statuses like CANCELLED or PICKED_UP

11. GET /order_id

    1. Retrieves orders on the ID will have final statuses like CANCELLED or PICKED_UP
